Hardware Specification
|
|

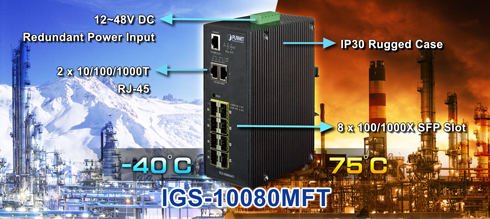

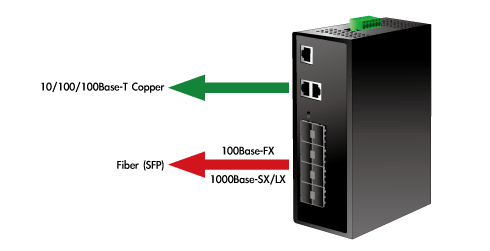

SFP/mini-GBIC Slots
|
8 100/1000Base-SX/LX mini-GBIC SFP slots
|
|
Copper Ports
|
2 10/100/1000Base-T Ethernet interface
|
|
Switch Architecture
|
Store-and-Forward
|
|
Switch Fabric
|
20Gbps / non-blocking
|
|
Throughput (packet per second)
|
14.8Mpps
|
|
Address Table
|
8K entries, automatic source address learning and ageing
|
|
Flow Control
|
IEEE 802.3x Pause Frame for Full-Duplex. Back pressure for Half-Duplex
|
|
Jumbo Frame
|
9Kbytes
|
|
Reset Button
|
< 5 sec: System reboot
|
|
> 5 sec: Factory Default
|
|
ESD Protection
|
6KV DC
|
|
EFT Protection
|
6KV DC
|
|
Enclosure
|
IP30 Aluminum Metal Case
|
|
Installation
|
DIN Rail Kit and Wall Mount Kit
|
|
Alarm
|
One relay output for power fail
|
|
Alarm Relay current carry ability: 1A @ DC 24V
|
|
LED Indicators
|
System:
|
|
Power 1 (Green)
|
|
Power 2 (Green)
|
|
Fault Alarm (Green)
|
|
Ring (Green) *
|
|
R.O. (Green) *
|
|
Per 10/100/1000T RJ-45 Ports:
|
|
1000 (Green)
|
|
10/100, LNK/ACT (Orange)
|
|
Per SFP Interface:
|
|
1000 LNK/ACT(Green)
|
|
100 LNK/ACT (Orange)
|
|
Dimension (W x D x H)
|
152 x 107x 72mm
|
|
Weight
|
1036g
|
|
Power Requirement
|
DC 12 to 48V, AC 24V Power Adapter
|
|
Power Consumption
|
13.92 Watts / 47.76BTU (Full loading)
|
|
Layer 2 function
|
|
Basic Management Interfaces
|
Web Browser, Remote Telnet, SNMP v1, v2c
|
|
Secure Management Interface
|
SSH, SSL, SNMP v3
|
|
Port configuration
|
Port disable/enable
|
|
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
|
|
Auto-Detection / Forced 100/1000Mbps SFP Fiber transceiver speed
|
|
Flow Control disable / enable
|
|
Power saving mode control
|
|
Port Status
|
Display each port’s speed duplex mode, link status, Flow control status, Auto negotiation status, trunk status
|
|
Port Mirroring
|
TX / RX / Both
|
|
Many to 1 monitor
|
|

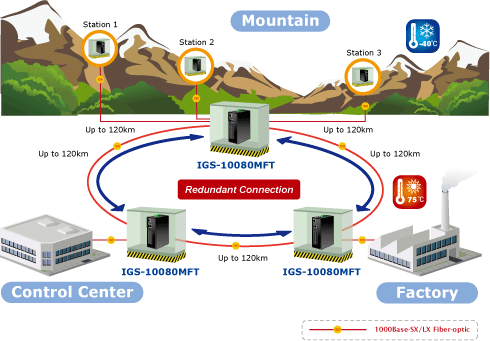

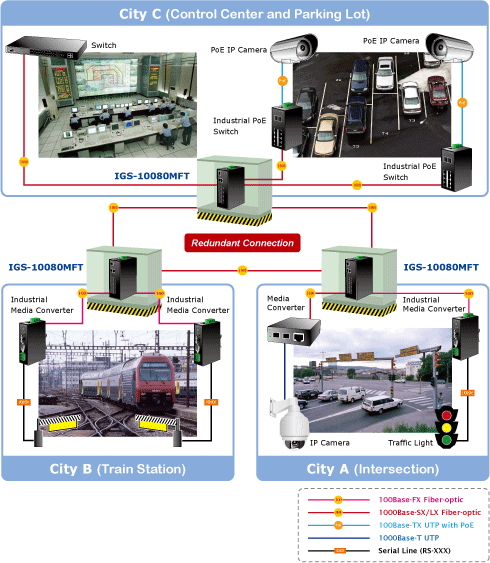

E.R.P.S. Ring *
|
Recovery time <20ms
|
|
VLAN
|
802.1Q Tagged Based VLAN, up to 255 VLAN groups
|
|
Q-in-Q tunneling
|
|
Private VLAN
|
|
MAC-Based VLAN
|
|
Protocol-Based VLAN
|
|
Voice VLAN
|
|
MVR (Multicast VLAN Registration)
|
|
Up to 255 VLAN groups, out of 4095 VLAN IDs
|
|
Link Aggregation
|
IEEE 802.3ad LACP / Static Trunk
|
|
Supports 5 groups of 10-Port trunk
|
|
QoS
|
Traffic classification based, Strict priority and WRR
|
|
8-Level priority for switching
|
|
- Port Number
|
|
- 802.1p priority
|
|
- 802.1Q VLAN tag
|
|
- DSCP field in IP Packet
|
|
IGMP Snooping
|
IGMP (v1/v2/V3) Snooping, up to 255 multicast Groups
|
|
IGMP Querier mode support
|
|
MLD Snooping
|
MLD (v1/v2) Snooping, up to 255 multicast Groups
|
|
MLD Querier mode support
|
|
Access Control List
|
IP-Based ACL / MAC-Based ACL
|
|
Up to 256 entries
|
|
Bandwidth Control
|
Per port bandwidth control
|
|
Ingress: 500Kb~1000Mbps
|
|
Egress: 500Kb~1000Mbps
|
|
SNMP MIBs
|
RFC-1213 MIB-II
|
|
RFC-2236 IGMPv2
|
|
RFC-2710 MLDv1
|
|
RFC-3376 IGMPv3
|
|
RFC-2879 RMON 1, 2, 3, 9
|
|
RFC-1493 Bridge MIB
|
|
RFC-1643 Ethernet MIB
|
|
RFC-2863 Interface MIB
|
|
RFC-2665 Ether-Like MIB
|
|
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
|
|
RFC-2737 Entity MIB
|
|
RFC-2618 RADIUS Client MIB
|
|
RFC3411 SNMP-Frameworks-MIB
|
|
IEEE 802.1X PAE
|
|
IF-MIB
|
|
LLDP
|
|
MAU-MIB
|
|
Standards Conformance
|
|
Regulation Compliance
|
FCC Part 15 Class A, CE
|
|
Stability Testing
|
IEC60068-2-32 (Free fall)
|
|
IEC60068-2-27 (Shock)
|
|
IEC60068-2-6 (Vibration)
|
|
Standards Compliance
|
IEEE 802.3 10Base-T
|
|
IEEE 802.3u 100Base-TX / 100Base-FX
|
|
IEEE 802.3z Gigabit SX/LX
|
|
IEEE 802.3ab Gigabit 1000T
|
|
IEEE 802.3x Flow Control and Back pressure
|
|
IEEE 802.3ad Port trunk with LACP
|
|
IEEE 802.1D Spanning Tree Protocol
|
|
IEEE 802.1w Rapid Spanning Tree Protocol
|
|
IEEE 802.1s Multiple Spanning Tree Protocol
|
|
IEEE 802.1p Class of service
|
|
IEEE 802.1Q VLAN Tagging
|
|
IEEE 802.1x Port Authentication Network Control
|
|
IEEE 802.1ab LLDP
|
|
Environment
|
|
Operating
|
Temperature: -40 ~ 75 degree C
|
|
Relative Humidity: 5 ~ 95 % (non-condensing)
|
|
Storage
|
Temperature: -40 ~ 75 degree C
|
|
Relative Humidity: 5 ~ 95 % (non-condensing)
|
