Hardware Specifications
|
|
|
Standard support
|
IEEE 802.11a/n Wireless LAN
|
|
|
IEEE 802.11i Wireless Security
|
|
|
IEEE 802.3 10Base-T Ethernet
|
|
|
IEEE 802.3u 100Base-TX Ethernet
|
|
|
IEEE 802.3x Flow Control
|
|
|
Memory
|
32 Mbytes DDR SDRAM
|
|
|
8 Mbytes Flash
|
|
|
Interface
|
Wireless IEEE 802.11a/n, 2T2R
|
|
|
LAN: 1 x 10/100Base-TX, Auto-MDI/MDIX
|
|
|
WAN: 1 x 10/100Base-TX, Auto-MDI/MDIX
|
|
|
Antenna
|
Built-in 14dBi Dual-Polarization Antenna
|
|
|
- Horizontal: 45 degree
|
|
|
- Vertical: 60 degree
|
|
|
Wireless RF Specifications
|
|
|
Wireless Technology
|
IEEE 802.11a
|
|
|
IEEE 802.11n
|
|
|
Data Rate
|
IEEE 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
|
|
|
IEEE 802.11n (20MHz): up to 150Mbps
|
|
|
IEEE 802.11n (40MHz): up to 300Mbps
|
|
|
Media Access Control
|
CSMA / CA
|
|
|
Modulation
|
Transmission / Emission Type: OFDM
|
|
|
Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM
|
|
|
Frequency Band
|
5.180GHz ~ 5.825GHz
|
|
|
Operating Channel
|
5.180GHz
|
CH36
|
5.580GHz
|
CH116
|
|
5.200GHz
|
CH40
|
5.600GHz
|
CH120
|
|
5.220GHz
|
CH44
|
5.620GHz
|
CH124
|
|
5.240GHz
|
CH48
|
5.640GHz
|
CH128
|
|
5.260GHz
|
CH52
|
5.660GHz
|
CH132
|
|
5.280GHz
|
CH56
|
5.680GHz
|
CH136
|
|
5.300GHz
|
CH60
|
5.700GHz
|
CH140
|
|
5.320GHz
|
CH64
|
5.745GHz
|
CH149
|
|
5.500GHz
|
CH100
|
5.765GHz
|
CH153
|
|
5.520GHz
|
CH104
|
5.785GHz
|
CH157
|
|
5.540GHz
|
CH108
|
5.805GHz
|
CH161
|
|
5.560GHz
|
CH112
|
5.825GHz
|
CH165
|
|
|
|
|
*The above 24 channels are defined in theory. The actual application will vary depends on the regulation in different regions and countries.
|
|
|
RF Output Power
|
IEEE 802.11a: 27 ± 1dBm
|
|
|
IEEE 802.11n: 24 ± 1dBm
|
|
|
Receiver Sensitivity
|
IEEE 802.11a: -92 ~ -73dBm @ 6Mbps ~ 54Mbps
|
|
|
IEEE 802.11n: -94 ~ -73dBm @ MCS0 ~ MCS15
|
|
|
Output Power Control
|
3~27dBm
|
|
|
Software Features
|
|
|
LAN
|
Built-in DHCP server supporting static IP address distributing
|
|
|
Supports 802.1d STP (Spanning Tree)
|
|
|
WAN
|
■ Static IP
|
|
|
■ Dynamic IP
|
|
|
■ PPPoE
|
|
|
■ PPTP
|
|
|
■ L2TP
|
|
|
■ IPSec
|
|
|
Operating Mode
|
■ Bridge
|
|
|
■ Gateway
|
|
|
■ WISP
|
|
|
Firewall
|
NAT firewall with SPI (Stateful Packet Inspection)
|
|
|
Built-in NAT server supporting Virtual Server and DMZ
|
|
|
Built-in firewall with Port / IP address / MAC / URL filtering
|
|
|

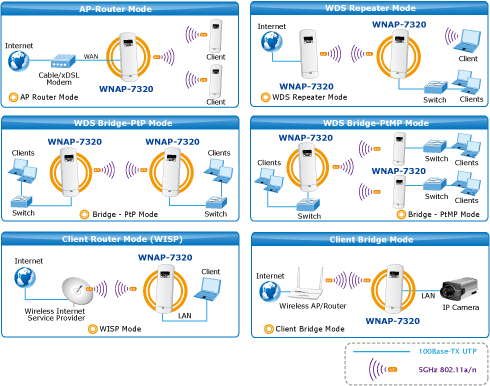

Wireless Mode
|
■ AP
|
|
|
■ Client
|
|
|
■ WDS PTP
|
|
|
■ WDS PTMP
|
|
|
■ WDS Repeater (AP+WDS)
|
|
|
Channel Width
|
20MHz / 40MHz
|
|
|
Wireless Isolation
|
Enables isolation of each connected wireless client from communicating with each other mutually.
|
|
|
Encryption Type
|
64/128-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
|
|
|
Wireless Security
|
Provides wireless LAN ACL (Access Control List) filtering
|
|
|
Wireless MAC address filtering
|
|
|
Supports WPS (Wi-Fi Protected Setup )
|
|
|
Enable / Disable SSID Broadcast
|
|
|
Multiple SSID
|
Up to 2
|
|
|
Max. Wireless Client
|
40
|
|
|
Max. WDS AP
|
8
|
|
|
Max. Wired Client
|
60
|
|
|
WMM
|
Supports Wi-Fi Multimedia
|
|
|
QoS
|
Supports Quality of Service for bandwidth control
|
|
|
NTP
|
Network Time Management
|
|
|
Management
|
Web UI, DHCP Client, Configuration Backup & Restore, Dynamic DNS, SNMP
|
|
|
Diagnostic tool
|
System Log, Ping Watchdog
|
|
|
Mechanical & Power
|
|
|
IP Rate
|
IP55
|
|
|
Material
|
Outdoor UV Stabilized Enclosure
|
|
|
Dimension (W x D x H)
|
275 x 93 x 45 mm
|
|
|
Weight
|
336 ± 5g
|
|
|
Installation
|
Pole mounting or Wall mounting
|
|
|
Power Requirements
|
LAN
|
|
|
■ 24V DC, 0.5A/ Passive PoE
|
|
|
■ Pin 4,5 VDC+
|
|
|
■ Pin 7,8 VDC-
|
|
|
Power Consumption
|
7.68W
|
|
|
Environment & Certification
|
|
|
Operation Temperature
|
-30~75 Degree C
|
|
|
Operating Humidity
|
10~95% non-condensing
|
|
|
Regulatory
|
CE / RoHS
|
|
|
Accessory
|
|
|
Standard Accessories
|
■ 24V DC Passive PoE injector & Power cord x 1
|
|
|
■ Mounting Tie x 2
|
|
|
■ Quick Installation Guide x 1
|
|
|
■ CD (User’s Manual, Quick Installation Guide) x 1
|
|
