Hardware
|
|
Standard compliance
|
IEEE 802.11a/n
|
|
IEEE 802.3
|
|
IEEE 802.3u
|
|
IEEE 802.3x
|
|
Memory
|
32 Mbytes DDR SDRAM
|
|
4 Mbytes Flash
|
|
Button
|
Reset Button x 1
|
|
LED
|
Provides 4-Level signal LED indicator
|
|
PoE
|
Passive PoE (Up to 60 meters)
|
|
Interface
|
Wireless IEEE 802.11a/n
|
|
LAN / WAN: 10/100Base-TX, Auto-MDI/MDIX x 1
|
|
Grounding Terminal x 1
|
|
Antenna
|
Internal (Default): 15dBi directional antenna (Dual-Polarization)
|
|
■ Horizontal: 60 degree
|
|
■ Vertical: 14 degree
|
|
External (Option): RP-SMA Female type Connector
|
|
■ Switchable by Software
|
|
■ For External Antenna Mode, attach antenna before
|
|
power on.
|
|
Data Rate
|
802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
|
|
802.11n (20MHz): up to 72Mbps
|
|
802.11n (40MHz): up to 150Mbp
|
|
Media Access Control
|
CSMA / CA
|
|
Modulation
|
Transmission / Emission Type: OFDM
|
|
Data modulation type: OFDM with BPSK, QPSK, 16-QAM, 64-QAM
|
|
Frequency Band
|
5.180-5.240GHz; 5.745-5.825GHz
|
|
Operating Channel
|
5.180GHz-CH36
|
|
5.200GHz-CH40
|
|
5.220GHz-CH44
|
|
5.240GHz-CH48
|
|
5.745GHz-CH149
|
|
5.765GHz-CH153
|
|
5.785GHz-CH157
|
|
5.805GHz-CH161
|
|
5.825GHz-CH165
|
|
* The actual channels will vary depends on the regulation in different
|
|
regions and countries.
|
|
RF Output Power
|
802.11a: 27 ± 1dBm
|
|
802.11n: 24 ± 1dBm
|
|
Receiver Sensitivity
|
802.11a
|
|
54M: -77dBm
|
|
48M: -79dBm
|
|
36M: -83dBm
|
|
24M: -86dBm
|
|
18M: -91dBm
|
|
12M: -92dBm
|
|
9M: -93dBm
|
|
6M: -94dBm
|
|
|
|
802.11n
|
|
150M: -73dBm
|
|
121.5M: -76dBm
|
|
108M: -77dBm
|
|
81M: -81dBm
|
|
54M: -84dBm
|
|
40.5M: -88dBm
|
|
27M: -91dBm
|
|
13.5M: -93dBm
|
|
Output Power Control
|
High (default)
|
|
Middle
|
|
Low
|
|
Power Requirements
|
Passive PoE 12V
|
|
Pin 4,5 VDC+
|
|
Pin 7,8 VDC-
|
|
Power Adapter
|
12V DC, 1A (switching)
|
|
Environment & Certification
|
|
Temperature
|
Operation: -30~70 Degree C
|
|
Storage: -40~70% Degree C
|
|
Humidity
|
Operating: 10~90% non-condensing
|
|
Storage: 5~95% non-condensing
|
|
Enclosure
|
Outdoor Weatherproof design
|
|
15KV ESD & 4000V Lightning Protection
|
|
Grounding Terminal Integrated
|
|
Regulatory
|
CE / FCC / RoHS
|
|
Software
|
|
LAN
|
■ Built-in DHCP server supporting static IP address distributing
|
|
■ Supports UPnP, Dynamic DNS
|
|
■ Supports Flow Statistics
|
|
■ IP & MAC Binding
|
|
■ IP / Protocol-based Bandwidth Control
|
|
WAN
|
■ Static IP
|
|
■ Dynamic IP
|
|
■ PPPoE / Russia PPPoE
|
|
■ PPTP / Russia PPTP
|
|
■ L2TP / Russia L2TP
|
|
■ BigPond Cable
|
|
VPN Passthrough
|
■ PPTP
|
|
■ L2TP
|
|
■ IPSec
|
|
Operating Mode
|
■ Standard AP (Wireless AP)
|
|
■ AP Router (Wireless Broadband Router)
|
|
■ AP Client Router (WISP Client Router)
|
|
Firewall
|
■ NAT firewall with SPI (Stateful Packet Inspection)
|
|
■ NAT with ALG (Application Layer Gateway)
|
|
■ Built-in NAT server supporting Port Triggering, Virtual Server,
|
|
and DMZ
|
|
■ Built-in firewall with IP address / MAC / DNS filtering
|
|
■ Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter,
|
|
DoS protection
|
|

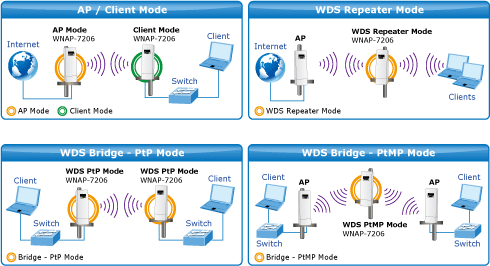

Wireless Mode
|
■ AP
|
|
■ Client
|
|
■ WDS PTP
|
|
■ WDS PTMP
|
|
■ WDS Repeater (AP+WDS)
|
|
■ Universal Repeater (AP+Client)
|
|
Channel Width
|
20MHz / 40MHz
|
|
Wireless Isolation
|
Enable to isolate each connected wireless clients
|
|
Wireless Security
|
64/128/152-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
|
|
Wireless MAC address filtering
|
|
Enable/Disable SSID Broadcast
|
|
Multiple SSID
|
Up to 3
|
|
Max. Wireless Client
|
25
|
|
Max. WDS AP
|
4
|
|
Max. Wired Client
|
60
|
|
WMM
|
Supports Wi-Fi Multimedia
|
|
NTP
|
Network Time Management
|
|
Management
|
Web-Based (HTTP) management interface
|
|
Supports SNMP v1/v2 agent with MIB-II
|
|
Remote management
|
|
SNTP time synchronize
|
|
Easy firmware upgrade
|
|
Configuration Backup & Restore
|
|
DHCP Client List
|
|
Diagnostic tool
|
■ System Log supports auto mail and save to local host
|
|
■ Ping Watch Dog allows you to continuously monitor the particular
|
|
connection between the device and a remote host.
|
|
■ Throughput Monitor provides real-time wireless throughput
|
|
information
|
|
■ Speed Test helps to test the connection speed
|
