Camera |
|
Image Device |
1/2.5" 5 mega progressive scan CMOS image sensor |
|
Lens |
FOV=186±4° (D/H/V), F=2.8, f=1.05mm |
|
Mechanical IR-cut Filter |
|

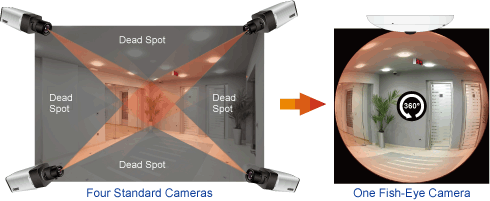

Angle of view: 360 degrees view angle |
|
Min Illumination |
1.9 Lux @ F2.8, without IRE (Color) |
|
0.1 Lux @ F2.8, without IRE (B/W) |
|
Effective Pixels |
1920 x 1920 pixels (4:3) |
|
Video |
|
Video Encoder |
H.264 / M-JPEG / MPEG |
|
Video Resolution |
H.264: |
|
1920 x 1920 / 1920 x 1080 / 1600 x 1200 / 1440 x1080 / 1280 x 1024 / 800 x 600 / 640 x 480 / 320 x 240 |
|
M-JPEG: |
|
1920 x 1920 / 1920 x 1080 / 1600 x 1200 / 1440 x1080 / 1280 x 1024 / 800 x 600 / 640 x 480 / 320 x 240 |
|
MPEG4: |
|
1920 x 1920 / 1920 x 1080 / 1600 x 1200 / 1440 x1080 / 1280 x 1024 / 800 x 600 / 640 x 480 / 320 x 240 |
|
Frame Rate |
Up to 15fps for 1920 x 1920 resolutions |
|
Image Setting |
Day / Night Mode |
|

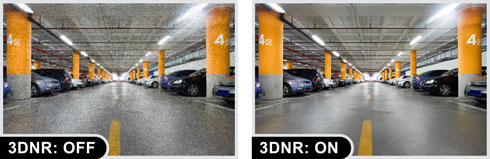

2D noise reduction |
|

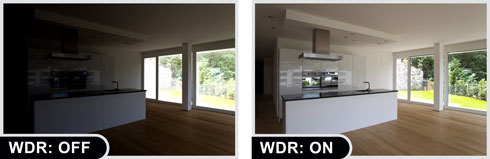

WDR |
|
Brightness, Saturation, Contrast, Sharpness |
|
Rotate/Mirror |
|
Text, time and date overlay |
|
Streaming |
Streaming over UDP, TCP, or HTTP |
|
M-JPEG streaming over HTTP (server push) |
|
Controllable frame rate and bandwidth |
|
Constant and variable bit rate (M-JPEG / H.264) |
|
Simultaneously multi-profile streaming |
|
ROI |
|
Rate Control |
CBR (Constant Bit Rate) |
|
VBR (Variable Bit Rate) |
|
UI Layout |
Source view (1O) |
|
180° Single broad view (1P wall) |
|
360° Panoramic view (1P ceiling) |
|
360° Quad view (4R) |
|
360° Double broad view (2P) |
|
180° Triple view (1P2R) |
|
360° Triple view (1P2R) |
|
Triple with Source view (102R) |
|
Quad with Source view (103R) |
|
Audio |
|
Audio Streaming |
2-way Audio |
|
Audio Compression |
RTSP: G.711 64kbps |
|
Microphone |
Built-in microphone |
|
Speaker |
Built-in speaker |
|
Network and Configuration |
|
Network Standard |
IEEE 802.3 10Base-T |
|
IEEE 802.3u 100Base-TX |
|
IEEE 802.11b/g/n |
|
Network Protocol |
HTTP, HTTPS, TCP/ IP, IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP, RTSP, RTP, UPnP, ONVIF (Profile S), Multicast |
|
Antenna connector |
1x2db dipole antenna |
|
Frequency |
2.4GHz |
|
RF Transmission Power |
OFDM: 13dBm |
|
CCK: 17dBm |
|
Output Power |
802.11n: 12dBm (default) +/- 1dBm |
|
802.11g: 14dBm (default) +/- 1dBm |
|
802.11b: 17dBm (default) +/- 1dBm |
|
Data Rate |
802.11n: up to 150Mbps |
|
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps |
|
802.11b: 1, 2, 5.5, 11Mbps |
|
Receive Sensitivity |
802.11b (11Mbps): |
|
CCK@8% PER = -88dBm |
|
802.11g (54Mbps): |
|
OFDM @ 10% PER = -72dBm |
|
802.11n Draft 6.0: |
|
HT20 @ 10% PER = -66 dBm |
|
HT40@ 10% PER= -61dBm |
|
Security |
Password Protection, Https encryption, User access log |
|
Users |
Depending on streaming data rate used |
|
System Integration |
|
Application Programming Interface |
Open API for software integration |
|
ONVIF |
|
Alarm Triggers |

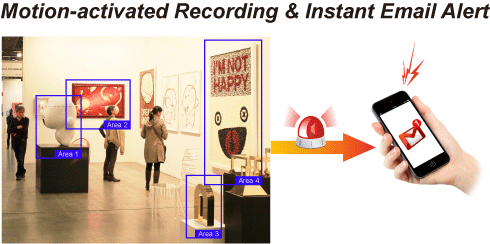

Intelligent video motion detection |
|
Alarm Events |
File upload via FTP, e-mail or Micro SD card |
|
Notification via e-mail |
|
Environment |
|
Power Requirements |
12V DC, 2A |
|
Power Consumption |
Max. 6W |
|
Operating Temperature |
0 ~ 50 degrees C |
|
Operating Humidity |
20 ~ 80% (non-condensing) |
|
Weight |
324g |
|
Dimensions (Φ x H) |
194 x 49 mm |
|
Emission |
CE, FCC |
|
Connectors |
10/100Mbps Ethernet, RJ-45 |
|
DC power jack |
|
Terminal block for 1 alarm input and 1 output |
|
Audio in |
|
Audio out |
|
Micro SD/SDHC card (max. 32GB, Class 6) |
|
Factory default reset button |
