Hardware Specifications |
|

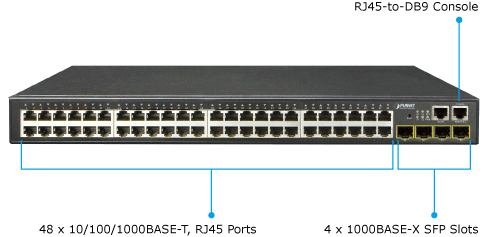

Copper Ports |
48 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|
SFP/mini-GBIC Slots |
4 1000BASE-X SFP interfaces |
|
Console |
1 x RJ45-to-RS232 serial port (9600, 8, N, 1) |
|
Switch Architecture |
Store-and-forward |
|
Switch Fabric |
104Gbps/non-blocking |
|
Switch Throughput |
77.38Mpps |
|
Address Table |
16K MAC address table with auto learning function |
|
Shared Data Buffer |
1.5Mbytes |
|
Flow Control |
Back pressure for half-duplex |
|
IEEE 802.3x pause frame for full-duplex |
|
Jumbo Frame |
9K bytes |
|
LED |
System: |
|
PWR, SYS |
|
Ports: |
|
10/100/1000T RJ45 Port: LNK/ACT |
|
1000X SFP slot: LNK/ACT |
|
Dimensions (W x D x H) |
442 x 280 x 44 mm, 1U height |
|
Weight |
3702g |
|
Power Consumption |
38 watts/129 BTU (maximum) |
|
Power Requirements |
AC 100~240V, 50/60Hz |
|
Management Function |
|
System Configuration |
Console, Telnet, SSH, Web browser, SNMP v1, v2c and v3 |
|
Management |

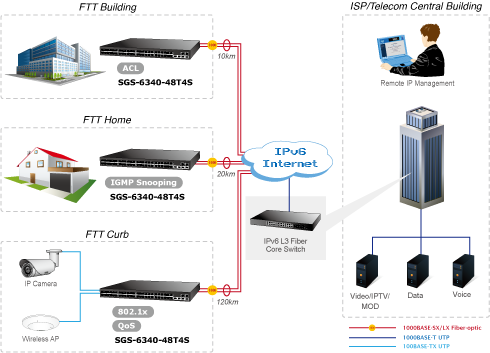

Supports both IPv4 and IPv6 addressing |
|
Supports the user IP security inspection for IPv4/IPv6 SNMP |
|
Supports MIB and TRAP |
|
Supports IPv4/IPv6 FTP/TFTP |
|
Supports IPv4/IPv6 NTP |
|
Supports RMOM 1, 2, 3, 9 four groups |
|
Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password |
|
Supports IPv4/IPv6 SSH |
|
The right configuration for users to adopt RADIUS server’s shell management |
|
Supports CLI, console, Telnet |
|
Supports SNMPv1/v2c/v3 |
|
Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area |
|
Supports Syslog server for IPv4 and IPv6 |
|
Supports TACACS+ |
|
Layer 3 Function |
|
Routing Protocol |
Static routing, RIP and OSPF |
|
Routing Table |
128 |
|
Layer 2 Function |
|
Port Configuration |
Port disable/enable |
|
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection |
|
Flow control disable/enable |
|
Bandwidth control on each port |
|
Port loopback detect |
|
Port Status |
Display each port’s speed duplex mode, link status, flow control status and |
|
auto negotiation status |
|

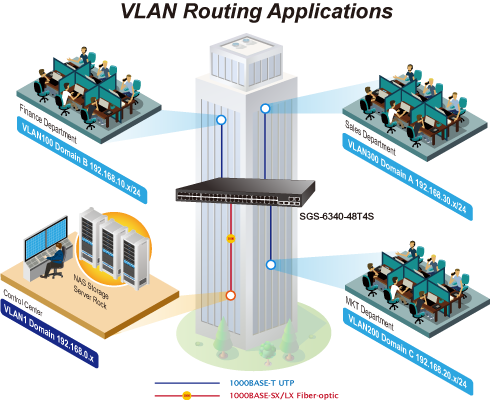

VLAN |
802.1Q tagged based VLAN, up to 256 VLAN groups |
|
802.1ad Q-in-Q (VLAN stacking) |
|
GVRP for VLAN management |
|
Private VLAN Edge (PVE) supported |
|
Protocol-based VLAN |
|
MAC-based VLAN |
|
IP subnet VLAN |
|
Bandwidth Control |
TX/RX/both |
|

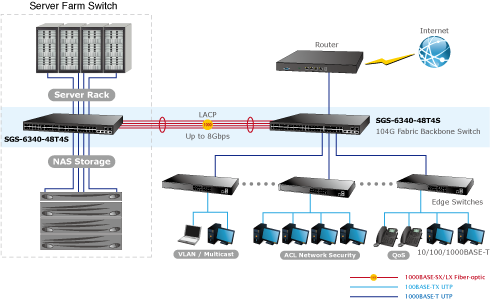

Link Aggregation |
IEEE 802.3ad LACP/static trunk |
|
Supports 128 groups with 8 ports per trunk group |
|
QoS |
8 priority queues on all switch ports |
|
Supports strict priority and Weighted Round Robin (WRR) CoS policies |
|
Traffic classification: |
|
- IEEE 802.1p CoS/ToS |
|
- IPv4/IPv6 DSCP |
|
- Port-based WRR |
|
Multicast |
IGMP v1/v2/v3 snooping |
|
Querier mode support |
|
MLD v1/v2 snooping |
|
Querier mode support |
|
Multicast VLAN Register (MVR) |
|
Access Control List |
Supports Standard and Expanded ACL |
|
IP-based ACL/MAC-based ACL |
|
Time-based ACL |
|
Up to 512 entries |
|
Bandwidth Control |
At least 64Kbps step |
|
Security |
Supports MAC + port binding |
|
IPv4/IPv6 + MAC + port binding |
|
IPv4/IPv6 + port binding |
|
Supports MAC filter |
|
ARP scanning prevention |
|
Authentication |
IEEE 802.1x port-based network access control |
|
AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS |
|
SNMP MIBs |
RFC 1213 MIB-II |
|
RFC 1215 Internet Engineering Task Force |
|
RFC 1271 RMON |
|
RFC 1354 IP-Forwarding MIB |
|
RFC 1493 Bridge MIB |
|
RFC 1643 Ether-like MIB |
|
RFC 1907 SNMP v2 |
|
RFC 2011 IP/ICMP MIB |
|
RFC 2012 TCP MIB |
|
RFC 2013 UDP MIB |
|
RFC 2096 IP forward MIB |
|
RFC 2233 if MIB |
|
RFC 2452 TCP6 MIB |
|
RFC 2454 UDP6 MIB |
|
RFC 2465 IPv6 MIB |
|
RFC 2466 ICMP6 MIB |
|
RFC 2573 SNMPV3 notify |
|
RFC 2574 SNMPV3 vacm |
|
RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB) |
|
RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) |
|
Standard Conformance |
|
Regulatory Compliance |
FCC Part 15 Class A, CE |
|
Standards Compliance |
IEEE 802.3 10BASE-T |
|
IEEE 802.3u 100BASE-TX |
|
IEEE 802.3z Gigabit 1000BASE-SX/LX |
|
IEEE 802.3ab Gigabit 1000BASE-T |
|
IEEE 802.3x flow control and back pressure |
|
IEEE 802.3ad port trunk with LACP |
|
IEEE 802.1D Spanning Tree Protocol |
|
IEEE 802.1w Rapid Spanning Tree Protocol |
|
IEEE 802.1s Multiple Spanning Tree Protocol |
|
IEEE 802.1p Class of Service |
|
IEEE 802.1Q VLAN tagging |
|
IEEE 802.1X port authentication network control |
|
IEEE 802.1ab LLDP |
|
RFC 768 UDP |
|
RFC 793 TFTP |
|
RFC 791 IP |
|
RFC 792 ICMP |
|
RFC 2068 HTTP |
|
RFC 1112 IGMP version 1 |
|
RFC 2236 IGMP version 2 |
|
RFC 3376 IGMP version 3 |
|
RFC 2710 MLD version 1 |
|
FRC 3810 MLD version 2 |
|
RFC 2328 OSPF v2 |
|
RFC 1058 RIP v1 |
|
RFC 2453 RIP v2 |
|
Environment |
|
Operating |
Temperature: 0 ~ 50 degrees C |
|
Relative Humidity: 5 ~ 90% (non-condensing) |
|
Storage |
Temperature: -10 ~ 70 degrees C |
|
Relative Humidity: 5 ~ 90% (non-condensing) |
